MAB 155

THE SMALL MACHINE WITH HUGE POWER

Horizontal magnetic core drilling machine with an angular gearbox. Ideal for drilling in extremely confined spaces.

The MAB 155 horizontal magnetic drill machine is a handy and compact machine for drilling in confined spaces. It’s now equipped with a new powerful motor. The MAB 155 horizontal magnetic drilling machine is with ratchet for optimum handling.

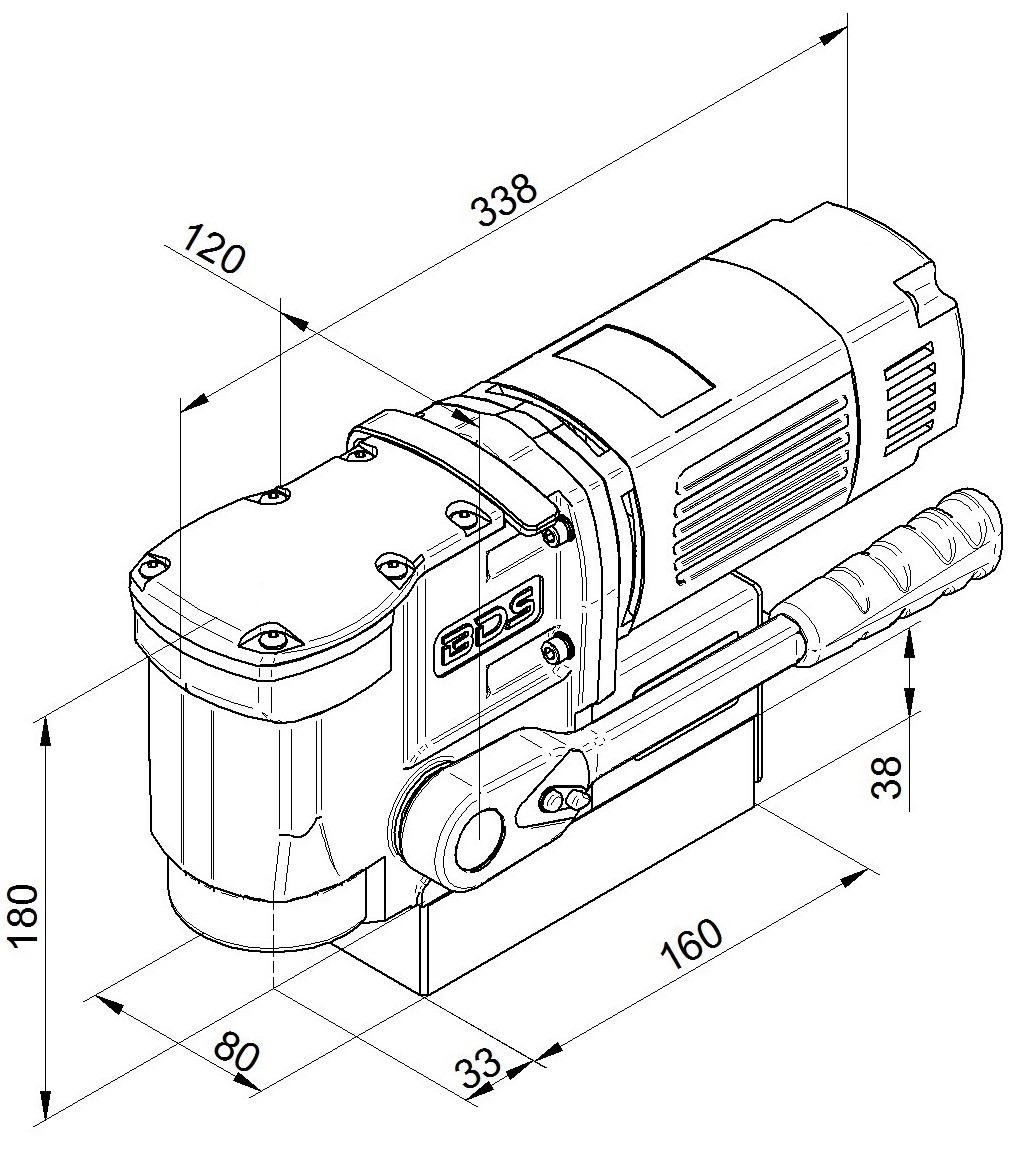

Extremely compact: only 180 mm (7 3/32) tall
Ratchet feed
1050 watt motor output
Only weighs11 kg
Brand new angular gearbox
Safe switches
Delivered in premium carry case
Made in Germany

35 mm

Cutting Depth

30 mm

Powerful Motor

1050 Watt

Weight

11 Kg

Technical Specifications

Motor output	Watt	1050
Voltage, V AC	Volt	230 – 110/125
Core drill cutting depth max.	mm	30
Core drill max. Ø HSS/TCT	mm	35
Twist drill		—
Reaming		—
Countersinking		—
Thread cutting		—
Stroke	mm	39
Magnet dimensions	mm	80 x 160 x 36.5
Weight	kg	11
Spindle taper		—
Arbor		—
KEYLESS 19 mm Weldon 3/4“		—
Speed gears		1
Gear 1 range	min-1	320
Permanent internal lubrication
Safety clutch		—
Torque control		—
Full-wave control electronics		—
Magnetic Indicator		—
Overheating protection		—
Carbon brush wear control		—
